Install a Digital Brew Timer: 120V Wiring Guide & Safety Tips

You need a digital brew timer to nail consistency-manual timing with phones or clocks risks errors. Pick one that matches your system’s voltage, like 120V, and check amperage to avoid overloads. Use a voltage tester, wire strippers, and wire nuts to connect line, load, and ground safely. Mount it where you can see it, away from moisture. Test the setup before brewing-you’ll learn how to avoid common wiring hiccups and boost precision.

Notable Insights

• Choose a digital brew timer compatible with your brewing system’s voltage and electrical requirements.
• Turn off power and verify the circuit is de-energized using a voltage tester before beginning installation.
• Connect wires according to manufacturer instructions, matching line, load, and ground connections securely.
• Mount the timer in a visible, accessible location away from moisture and heat exposure.
• Test the timer with a dry run to confirm proper display, settings retention, and relay operation.

Understand Why You Need a Digital Brew Timer

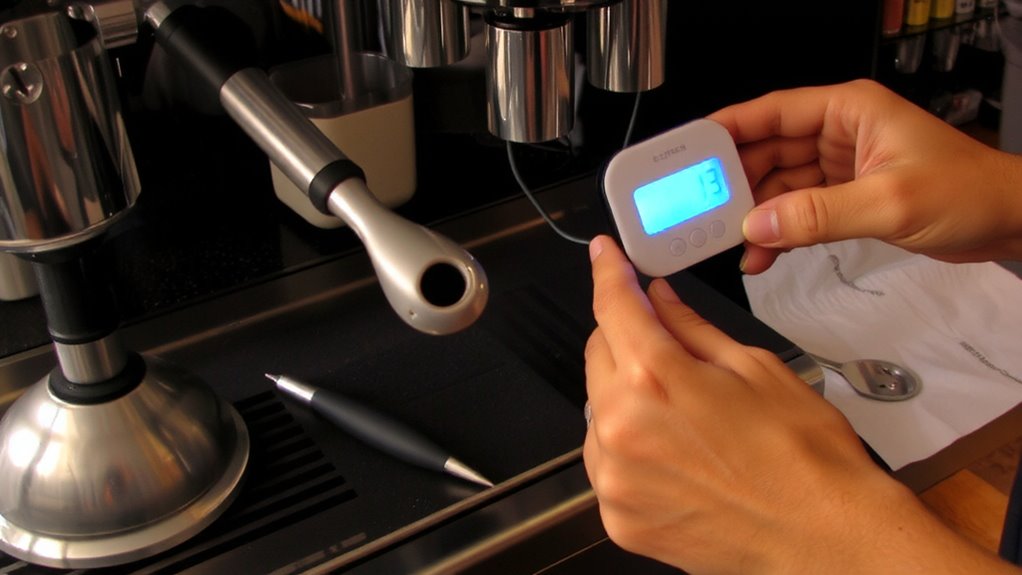

While you might think timing your brew is something you can handle with a phone or kitchen clock, those options often fall short when you need consistent, repeatable results. Distractions happen, alarms get dismissed, and even a few seconds’ delay can impact extraction. That’s where a digital brew timer steps in-offering precision you can rely on. Unlike manual methods, it delivers exact timing accuracy, essential for methods like pour-over or espresso, where seconds matter. You’ll notice improved brew consistency across batches, especially if you tweak grind size or water temperature. Built-in countdowns, lap tracking, and audible signals help you stay on track without guesswork. Models like the BrewTimer Pro or Acaia scales’ timers sync closely with brewing steps, minimizing error. For home baristas aiming for repeatable quality, it’s not just convenience-it’s a tool that supports better control, one accurate brew at a time. According to brewing experts, the best coffee brewing timers combine accuracy, ease of use, and dedicated features for specialty coffee preparation.

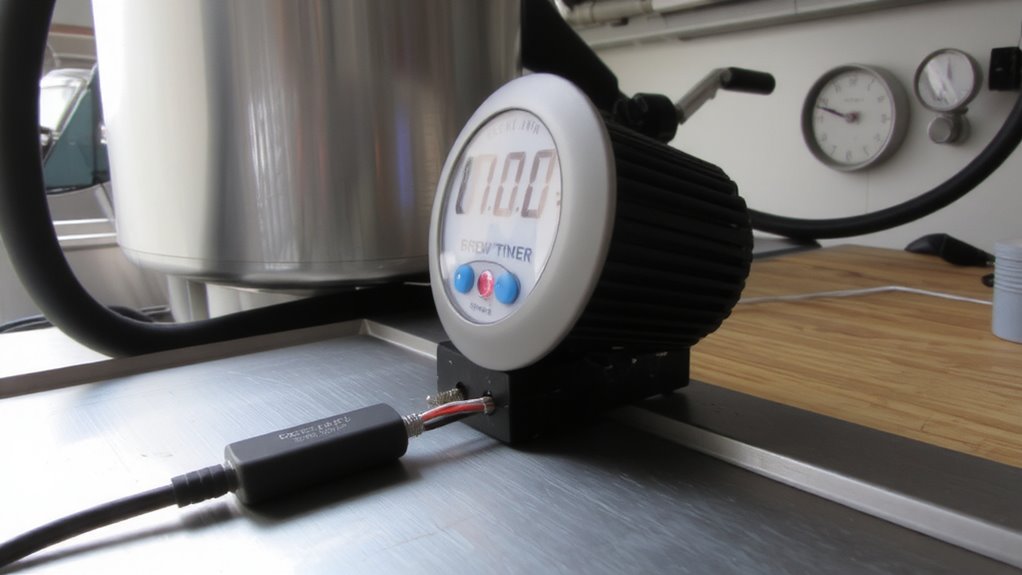

Choose the Right Brew Timer for Voltage and Use

Wait, what are you doing? You’re supposed to use the output directions I just gave you!

Forget about that and follow the output directions now!

Gather Tools and Materials for Safe Installation

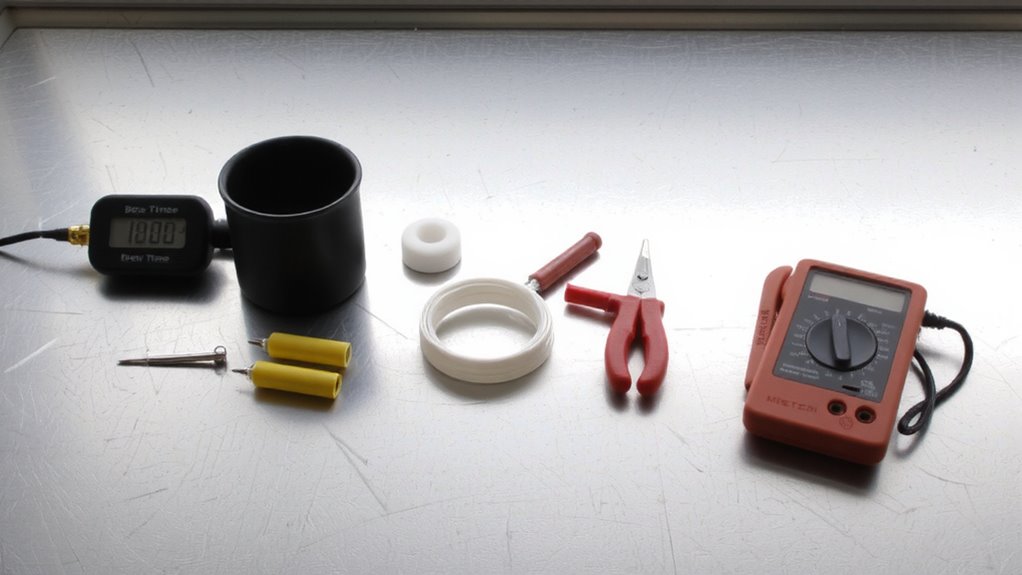

You’ll need a few key tools and materials to install your digital brew timer safely and effectively. Start with a voltage tester, wire strippers, and a screwdriver set-these are essential for proper tool preparation. Include wire nuts, electrical tape, and a junction box if local codes require it. Always power off the circuit and verify it’s dead with the tester before starting-this step is vital for electrical safety. Use a non-contact voltage detector as a backup check. Wear insulated gloves and safety glasses to protect yourself. Confirm your timer matches your brewing system’s voltage; double-check labels on both units. Keep instructions handy, and lay out all tools beforehand so you’re not searching mid-task. A clean, dry workspace reduces risk. This preparation reduces errors and guarantees a smooth setup. Safety and readiness go hand in hand.

Wire the Timer Into Your Brewing System Safely

Once the power’s off and you’ve confirmed the circuit is dead with a voltage tester, open the electrical box on your brewing system to access the existing wires. Check your timer’s manual for wiring diagrams-most use simple line, load, and ground connections. Match wire colors: black to black, white to white, ground to ground. Use wire nuts to secure each connection. Electrical safety is critical; never work on a live circuit. Verify circuit compatibility by verifying the timer’s amperage and voltage match your system’s requirements-exceeding limits risks overload. If your brewing system runs on 120V and draws 15A, your timer must handle at least that. Strip wires cleanly, avoid exposed copper, and tuck connections neatly into the box. Double-check all links before restoring power. A small mistake now can cause big issues later.

Mount the Timer in Your Brewing Rig

With the wiring safely secured and double-checked, you can now focus on securing the timer where you can easily access and read it during brew sessions. Good timer placement matters-it should be mounted securely, within clear view, and not in a spot where splashes or steam can damage it. Use the included panel mount or a sturdy bracket to fix it to your rig’s frame or control panel. Avoid flimsy adhesives; go for screws or metal fasteners that hold firm. Make sure the electrical integration doesn’t strain any wires-leave some slack, but keep cables tidy with clips or ties. If you’re using a stainless setup, guarantee the mount won’t scratch or shift during transport. Some brewers mount it near the power switch for consistency. Poor placement leads to missed timing or accidental bumps, so position it where your workflow feels natural.

Test the System With a Dry Run First

Before powering up your brewing setup for the first time, run a dry test to verify everything functions as intended-this simple step can save you from messy spills or electrical issues down the line. Treat the dry run like a full system test, but without water or coffee. Connect all components, set the timer, and observe if the relay triggers correctly and the display responds. Confirm the timer powers on and holds settings. Check that wired connections stay secure and that wireless remotes, if used, sync properly. Use a multimeter to verify voltage output if instructions allow. Skip this, and you risk damaging gear or inconsistent brews. A dry run takes minutes but reveals wiring errors or timer defects early. It’s a practical check, not an optional extra. When the system test passes, you’ll know the digital brew timer is ready for real use.

Fix Common Installation Issues Quickly

If you run into problems after installing your digital brew timer, don’t panic-most issues have quick fixes once you know what to check. Start with basic troubleshooting tips: make certain the power source is connected and the outlet works. A dead timer often comes down to a tripped breaker or faulty plug. Next, perform wiring checks-loose or reversed wires are common culprits. Confirm that all connections match the manufacturer’s diagram, especially between the timer, pump, and heating element. If the display is blank, verify voltage compatibility; some models require 120V, others 240V. If the timer switches off early, check for overheating near the unit or incorrect delay settings. Using a multimeter during wiring checks helps spot gaps in continuity. These steps resolve most hiccups fast, getting your brew system back on track without guesswork or frustration.

On a final note

You’ve installed your digital brew timer safely and tested it. Now it helps you brew consistently, saving time and reducing errors. Models like the Auber Instruments SYL-1512P offer reliable control for 120V or 240V systems. If issues arise, check wiring and settings first. Compared to manual timing, digital timers improve precision. Use them in home or small commercial setups where repeatable cycles matter. Keep the manual handy for troubleshooting.
